Professional Micrometer S_Mike Evo

FEATURES

Wireless Connectivity: The integrated Bluetooth® system allows for easy transfer and management of data without the need for cables or wires.

High Precision : The micrometer provides precise measurements with a spindle feed rate of 1 mm per revolution and a resolution of 0.001 mm on the XXL display.

Duarability and Reliability: The micrometer is designed with tungsten carbide measuring anvils and has a protection class IP67 rating, ensuring that it is robust and reliable in harsh environments.

Versatility: With a measuring range of up to 100mm, the micrometer can be used for a wide range of applications.

Consistent Results: With a measuring force of 10N, the micrometer delivers consistent and reliable readings, ensuring high-quality measurements.

FEATURES

High Speed and Accurate Measurements: This micrometer comes in 3 measuring ranges (0-25mm, 25-60mm, 60-95mm), with a display resolution of 0.001 mm. The micrometer is designed for fast measurement and high precision with a non-rotating, high parallelity linear spindle with a feed of 10 mm per revolution.

Advance Connectivity: This micrometer features Bluetooth® system, enabling quick and easy wireless data transfer. With just one button press, you can transfer measurement data seamlessly, saving time and minimizing the potential for data acquisition errors.

Stable, Reliable and Repeatable: Precise and solid system featuring a ratchet that cancels operator influence and guarantees excellent repeatability, making this micrometer ideal for quality control and precision manufacturing.

Convenient Features: SIS Absolu System: Automatically wakes up when spindle is moved, enters sleep mode after 10 minutes of inactivity, position memorized in sleeping mode, enhancing efficiency and battery longevity.

Built To Last: 2mm cylindrical anvils made of tungsten carbide. This micrometer is designed to withstand heavy-duty work with a protection rating of IP67, even when connected. The thimble is made of polyacetal-copolymer for added durability.

Flexible and Cost Saving: With 2 selectable measuring forces 5N/10N (versions 903.030X) in one instrument. Customizable with diameter keys above 2mm upon request. Available in Bluetooth versions upon request.

Optional stand for easier parts handling.

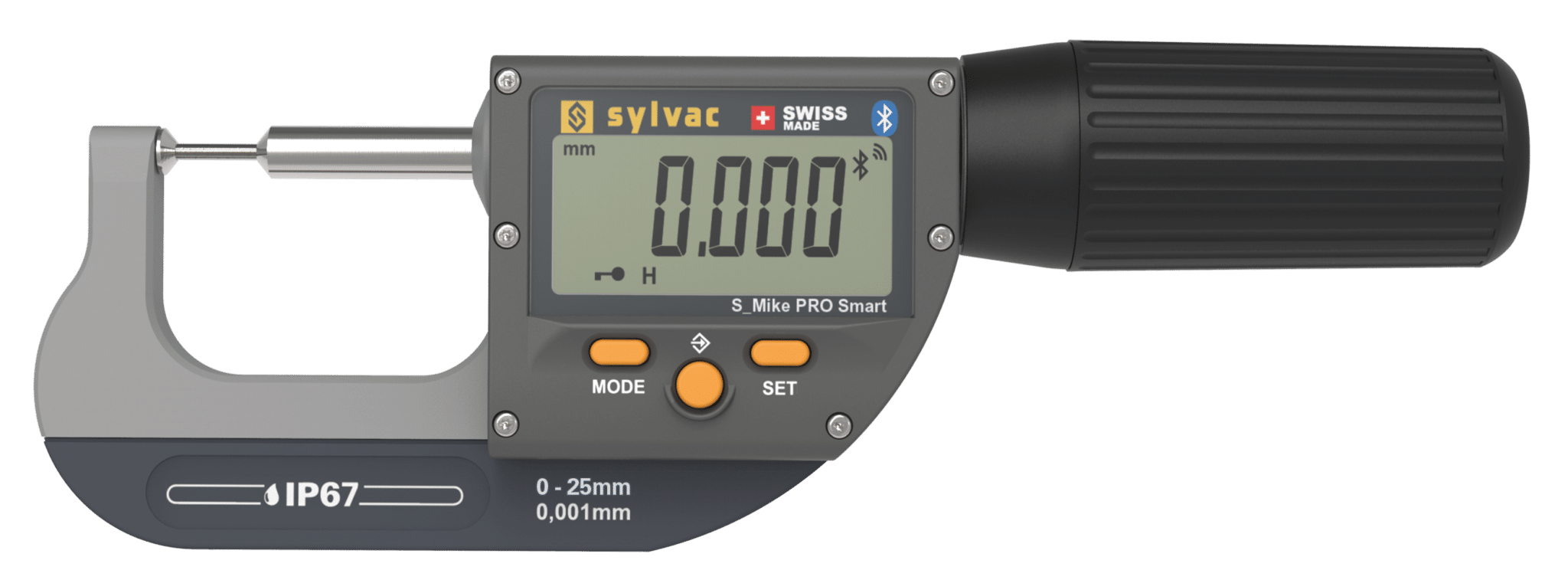

Professional Micrometer S_Mike Pro Cylindrical Ø2

Professional micrometer S_Mike PRO Cylindrical Ø6.5 Smart

FEATURES

High-Speed and Accurate Measurements: This micrometer comes in 3 measuring ranges (0-30mm, 30-66mm, 66-102mm), with a display resolution of 0.001 mm. The micrometer is designed for fast measurement and high precision with a non-rotating, high parallelity linear spindle with a feed of 10 mm per revolution.

Advance Connectivity: This micrometer features an integrated Bluetooth® system, enabling quick and easy wireless data transfer. With just one button press, you can transfer measurement data seamlessly, saving time and minimizing the potential for data acquisition errors.

Stable, Reliable and Repeatable: Precise and solid system featuring a ratchet that cancels operator influence and guarantees excellent repeatability, making this micrometer ideal for quality control and precision manufacturing.

Convenient Features: SIS Absolu System: Automatically wakes up when spindle is moved, enters sleep mode after 10 minutes of inactivity, position memorized in sleeping mode, enhancing efficiency and battery longevity.

Built to Last: 6.5mm cylindrical anvils made of tungsten carbide. This micrometer is designed to withstand heavy-duty work with a protection rating of IP67, even when connected. The thimble is made of polyacetal-copolymer for added durability.

Flexible and Cost Saving: With 2 selectable measuring forces 5N/10N (versions 803-030X) in one instrument. Optional stand for easier parts handling.

FEATURES

Unmatched Durability and Resilience: The digital indicator is built with a robust construction that ensures longevity and performance, while also also water and coolant resistant, making it ideal for use in challenging conditions.

Efficiency at Your Fingertips: The digital indicator features a simple and robust design with a Ø 59.5 mm non-rotating housing. Its central button allows you to easily switch between preset recall or value transmission, streamlining your workflow.

Versatility and Convenience: S_Dial WORK offer a range of standard functions, including mm/inch conversion, preset capabilities, and direction of measurement. This versatility ensures compatibility with various measurement requirements.

Uninterrupted Operation: With the Automatic Wake-up and Sleeping Mode powered by the Absolute System SIS, the digital indicator saves energy and prolongs battery life. You can rely on continuous operation when you need it most.

Flexible Power Options: This digital indicator provides «Proximity» and «Power» data outputs, allowing you to use the instrument without batteries when connected by the provided cable.

Customizable Precision: Choose from two display resolutions, 0.01 mm and 0.001 mm, and select the measuring range that suits your needs—options include 12.5 mm, 25 mm, and 50 mm.

FEATURES

High Speed and Accurate Measurements: This micrometer comes in 3 measuring ranges (0-25mm, 25-60mm, 60-95mm), with a display resolution of 0.001 mm. The micrometer is designed for fast measurement and high precision with a non-rotating, high parallelity linear spindle with a feed of 10 mm per revolution.

Advance Connectivity: This micrometer features Bluetooth® system, enabling quick and easy wireless data transfer. With just one button press, you can transfer measurement data seamlessly, saving time and minimizing the potential for data acquisition errors.

Stable, Reliable and Repeatable: Precise and solid system featuring a ratchet that cancels operator influence and guarantees excellent repeatability, making this micrometer ideal for quality control and precision manufacturing.

Convenient Features: SIS Absolu System: Automatically wakes up when spindle is moved, enters sleep mode after 10 minutes of inactivity, position memorized in sleeping mode, enhancing efficiency and battery longevity.

Built To Last: 2mm cylindrical anvils made of tungsten carbide. This micrometer is designed to withstand heavy-duty work with a protection rating of IP67, even when connected. The thimble is made of polyacetal-copolymer for added durability.

Flexible and Cost Saving: With 2 selectable measuring forces 5N/10N (versions 903.030X) in one instrument. Customizable with diameter keys above 2mm upon request. Available in Bluetooth versions upon request.

Optional stand for easier parts handling.

Digital Indicator S_Dial WORK Smart

Mini Digital Indicator S_Dial MINI Basic

FEATURES

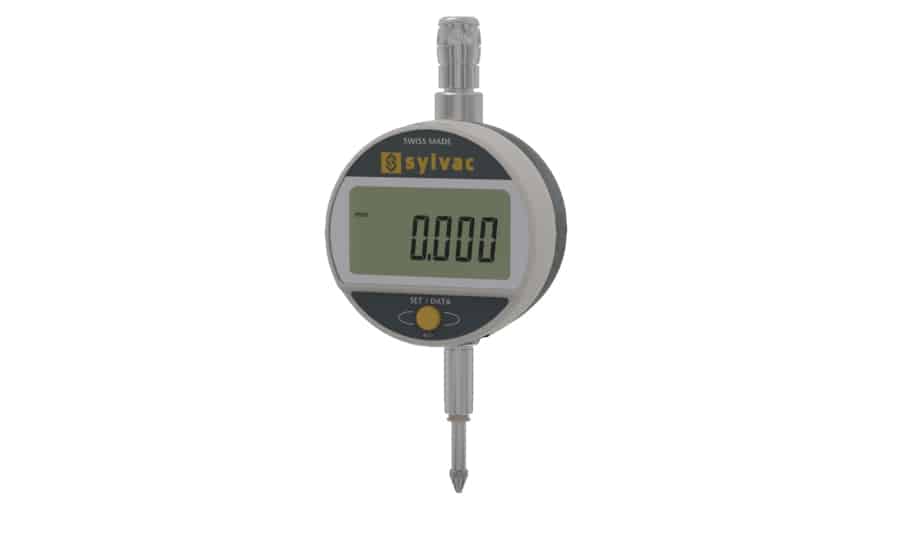

Seamless Integration: Integrate our digital indicator effortlessly into machines or measuring fixtures, optimizing your workflow. With it compact Ø 45 mm non-rotating housing and robust design, it is the ideal solution for space-constrained environments.

Efficiency Perfected: Achieve optimal efficiency with a central button for preset recall and value transmission. Experience error-free operation through hidden setup, preventing user mistakes. Enjoy extended battery life with automatic power shut down. Effortlessly select mm/inch and measurement direction for accurate results.

Robust Executions: Choose between the Protected (P) version, featuring IP67 protection with a bellows-protected spindle, or the Standard (S) version with IP54 protection and a lifting cap. Clamping stem Ø 8-h6 of hardened and ground stainless steel.

High Precision and Versatility: Achieve high precision with the digital display resolution options of 0.01 or 0.001 mm. With a measuring range of 12.5 mm, this comparator caters to a wide range of measurement needs.

FEATURES

Portability and Versatility: Our test indicator, designed to check roundness and flatness, features a compact housing of Ø 45 mm and a rotatable display by 270° for convenient on-the-go measurements. Its integration capabilities allow for easy use on jigs, special fixtures, and measuring devices.

Seamless Data Acquisition: Equipped with integrated Bluetooth® technology, our digital test indicator enables wireless transmission of measurements, ensuring quick and error-free data acquisition for enhanced productivity. Additionally, it supports data output via RS232 combined with external power.

Unmatched Precision and Accuracy: Achieve precise and accurate measurements with our test indicator. The digital display resolution of 0.001 mm, along with the analogue scale, provides detailed and reliable readings. Trust our high-quality technology to deliver stable and reproducible results.

User-Friendly: Enjoy a user-friendly experience with our test indicator. The easy-to-use interface and interchangeability of components make setup a breeze. The 270° turnable display ensures readability from any angle. Additional features include automatic switch-off and a programmable favorite button for added convenience.

Stylus Options and Measurement Range: Choose from three versions, offering different stylus lengths and measurement ranges. Whether it’s a 12 mm stylus with a measuring range of 0.8 mm, a 36 mm stylus with a range of 2.0 mm, or a combination model with both stylus options, our instrument ensures precise measurements in various scenarios. The M1.4 stylus with Ø 2 mm tungsten carbide ball is swiveling and interchangeable for added flexibility.

Resistant and Durable Construction: Designed to withstand challenging environments, our test indicator is water and coolant resistant with an IP54 rating. Revolutionary mechanical construction, without gears, eliminating hysteresis error.

Digital Test Indicator S_Dial Test Smart

FEATURES

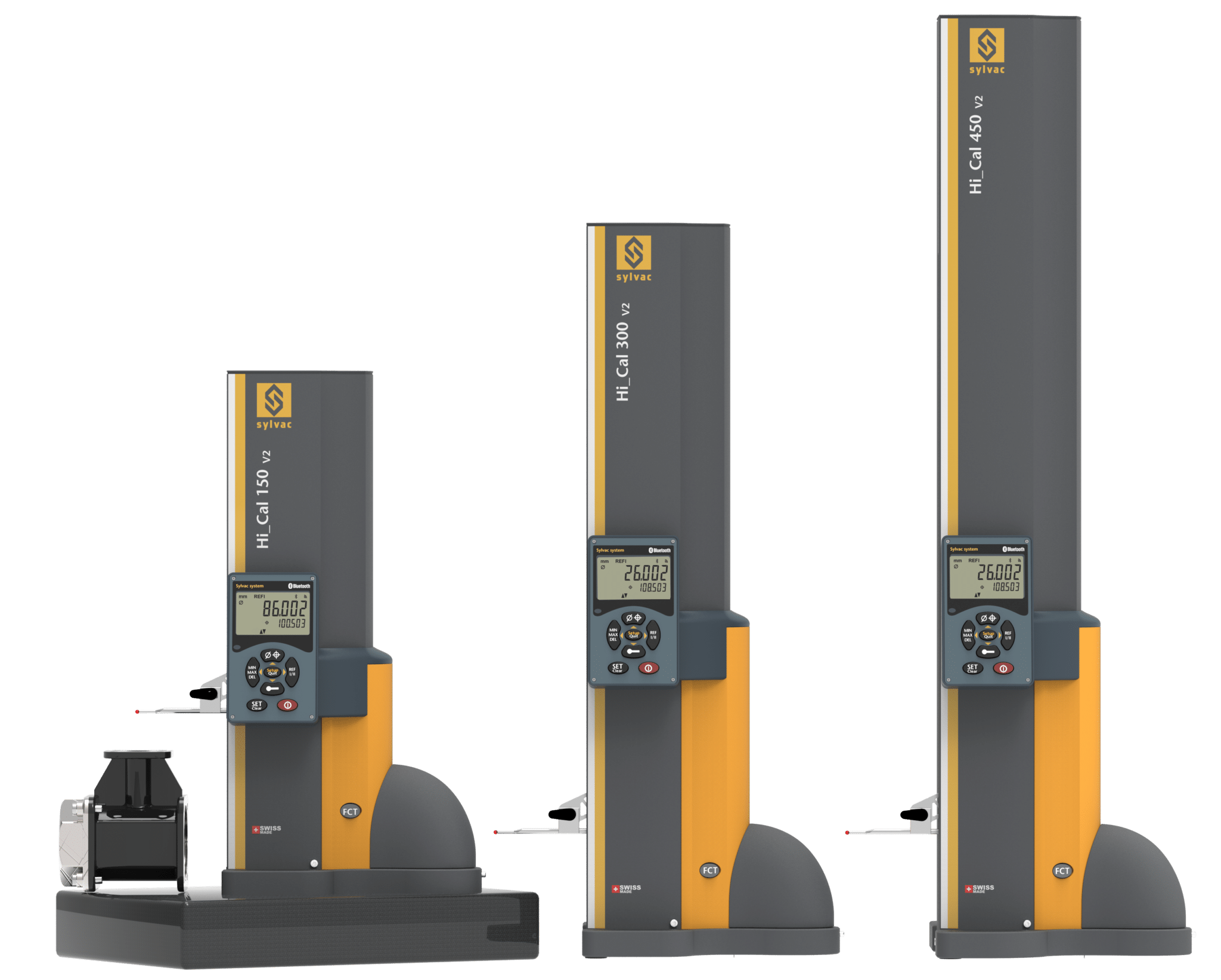

Precision Measuring Made Easy: Measure various geometries with ease thanks to our intuitive motorized displacement paddle and simplified guidance system.

Seamless data acquisition: The device features data outputs for PROXIMITY, POWER, and Bluetooth® that make it easy to integrate into any setup. It also has an integrated Bluetooth® system that allows for wireless data transfer.

Streamline your workflow: Benefit from our MIN/MAX/DELTA functions, selectable favorite function, and light and sound indication to validate the probing process.
Maximum Accuracy : Our measuring system offers unmatched accuracy, with display resolutions of 0.01 / 0.001 / 0.0005mm, and measuring range of 150, 300, and 450 mm.

Durability and Reliability: Our measuring system boasts a fixed clamping probe holder, interchangeable ruby tips, and automatic pre-positioning, ensuring reliable and fast measurements every time.

Operator-Independent Measurements: Our system features extremely low and adjustable measuring force according to the probe, and the probe constant value is memorized even when switched off, ensuring operator-independent measurements every time.
